Our Product Portfolio

Explore our cutting-edge automotive products for enhanced performance.

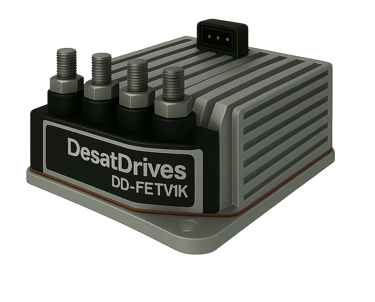

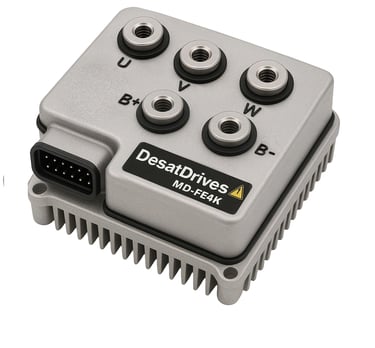

AC Motor Drive (3 Phase Inverter)

• Product category : Tractive inverter

• Voltage range : 9 V–16 V / 36 V–65 V

• Power rating : 4Kw

• Peak current : 200A

• Efficiency: ≥ 97%

• Motor Type : PMSM, BLDC, IM

• Control: FOC (Field Oriented Control) with sensor or sensor less feedback

• Protection: Stall, phase short, over-temp, over-current

• Ingress Protection : IP67

DCDC converter

• Input Voltage Ranges: 9 V–16 V / 36 V–65 V

• Output Voltage: 12V / 48V

• Topology : Bi-Directional Buck-Boost

• Power Ratings: 1 kW / 2.5 kW options

• Efficiency: ≥ 97% (typical at 50% load)

• Isolation: Non-isolated (isolated on request)

• Cooling: Conduction or liquid-cooled versions available

• Control: CAN-based power and direction control

• Protection: OVP, UVP, OCP, OTP, anti-reverse, active short protection

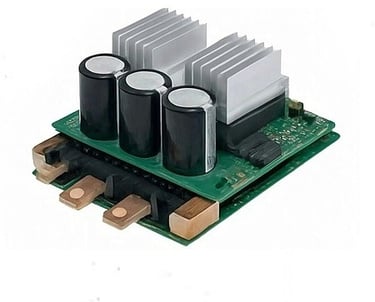

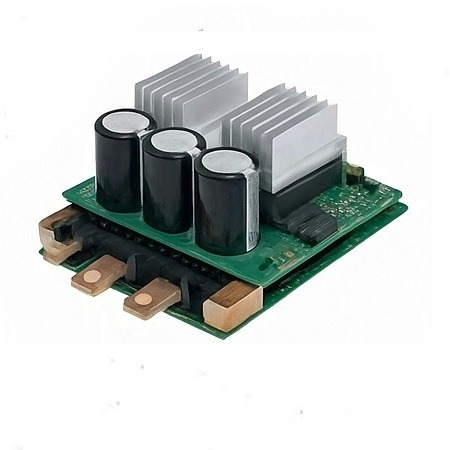

Integrated DC Motor Driver

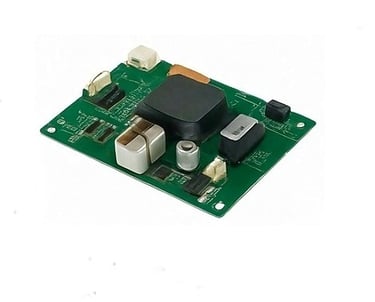

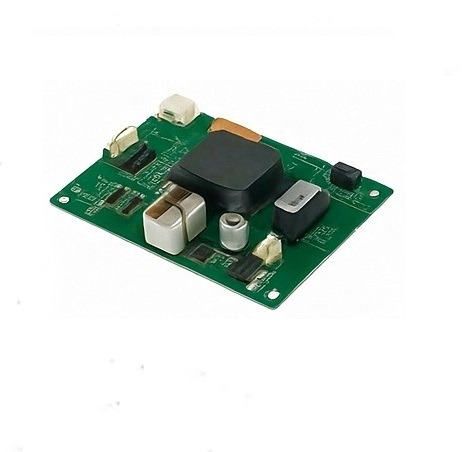

Auxiliary power supply For control module

• Input Voltage: 9 V–16 V / 36 V–65 V

• Outputs:

  • 12 V regulated (5 A)

  • 5 V regulated (up to 3A)

  • Optional 3.3 V rail (2 A)

• Efficiency: ≥ 95% overall

• Ripple/Noise: <50 mV p-p at full load

• Protection: OVP, OCP, thermal shutdown, short-circuit

• One module to power multiple auxiliary devices

• Automotive-grade EMI compliance

• Application : infotainment, sensors, ECUs) directly from 48 V or 12 V input.

• Input Voltage Ranges: 9 V–16 V / 36 V–65 V

• Power rating : 300W

• Peak current : 20A

• Efficiency: ≥ 96%

• Motor Type : PMDC

• Placement : Mounted with motor casing

• Protection: Stall, phase short, over-temp, over-current

• Cooling: Conduction

• Control: CAN-based power and direction control

Solenoid Driver

• Input Voltage: 9 V–16 V / 36 V–65 V

• Outputs:

  • Channel 1: 12V, up to 2A

  • Channel 1: 12V, 3A

• Efficiency: ≥ 95%

• Load : Valves, Relay,

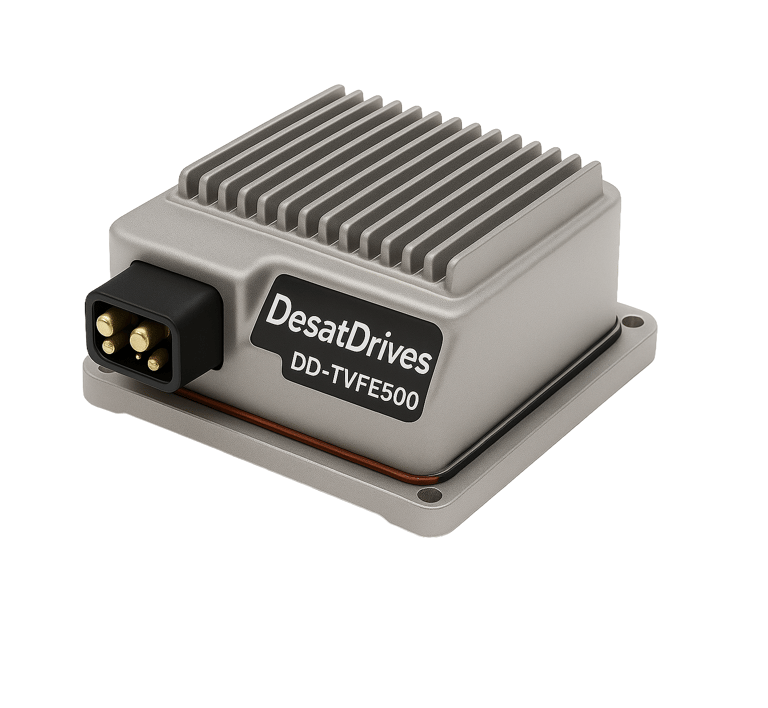

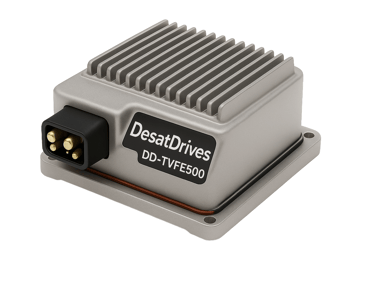

DC Motor Drive

• Product category : Tractive Drive

• Voltage range : 9 V–16 V / 36 V–65 V

• Power rating : 500W

• Peak current : 50A

• Efficiency: ≥ 97%

• Motor Type : PMDC

• Protection: Stall, phase short, over-temp, over-current

• Ingress Protection : IP67
